Product Description:

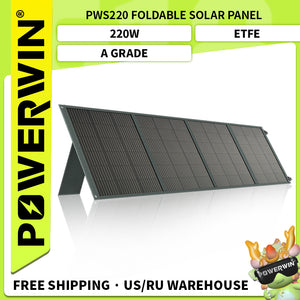

The PWS220 is an advanced and high-capacity solar panel designed to deliver superior energy output for a variety of applications. Utilizing cutting-edge mono-crystalline silicon technology, this solar panel is ideal for off-grid systems, home energy solutions, RVs, and outdoor activities, ensuring reliable power generation wherever you go.
Key Specifications:
Category |
Specification |
General Specs |
|
Unfold Size |
1400 × 670 mm |
Folded Size |
700 × 350 mm |
Product Weight |
4.5 kg |
Working Temperature |
-10 ~ 65 °C / 14 ~ 149 °F |
Warranty |
12 Months |
Output Specs |
|
Rated Power |
220W |
Volts/Amps |
19.9V / 9.9A |
MC4 Connector |
110W Rated |
XT60 |
8-25V / 12A |
DC5525 Output |
8-25V / 12A |
USB-C Output |
5-12V PD 20W |
USB-A Output |
5V, 2.4A |
Packing List
Item |
Description |
1x 220W Foldable Solar Panel |
Main solar panel |
1x PV Cable (mounted) |
Pre-installed PV connection cable |
1x DC Adapter Set (give away) |
Set of DC adapters included |
1x User Manual |
Instruction manual |
Portable Powerhouse
Require portability? We've got the solution. Our 12.8V 200Ah battery packs an impressive 2560Wh of energy and weighs merely 45 lbs. That's just one-third the weight of typical Sealed Lead Acid (SLA) batteries! Effortlessly take it on your journeys or shift it around your workspace without any hassle.
Compact Size for Big Power
200Ah general-purpose battery, where compact size meets immense capability. Perfectly designed for versatility and efficiency. Whether it's for camping, DIY projects, or backup power, our compact 200Ah battery is your trusted companion. Up to 24% lighter than average 12.8V 200Ah LFP battery.
Versatile Connectivity
Our battery provides versatile connections, allowing expansion in both serial and parallel setups. It effortlessly adjusts to your changing power requirements, making it a seamless fit for your evolving energy needs.
Charging Guide
There are two types of charging methods we recommended. We highly recommend using our brand battery charger as your first LiFePO4
